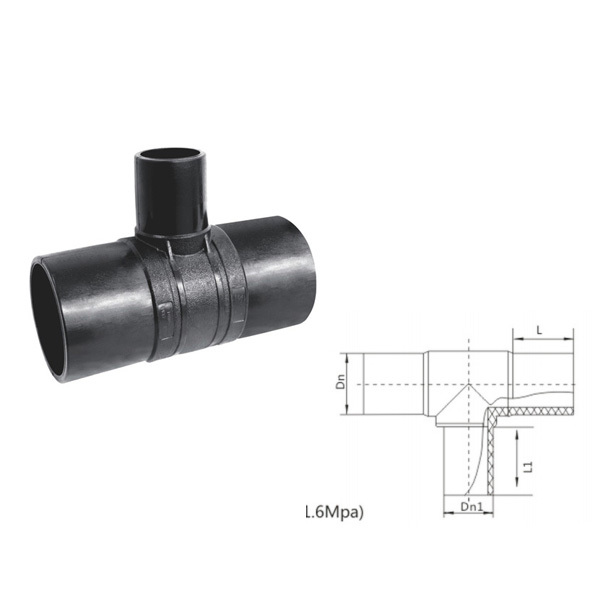

Butt fusion Reducing Tee

Category：

HDPE Butt Fusion Pipe Fittings

>> Message

>> Contact us

Specification：PE100 SDR11(1.6Mpa) SDR13.6(1.25Mpa) SDR17 (l.OMpa)

Product details

Specification (mm)	Nominal diameter Dn	Effective length of supervisor L	Effective length of branch pipe L1	Outer diameter of branch pipe L1
Dn75x50x75	75x50x75	74	60	50
Dn75x63x75	75x63x75	65	63	63
Dn90x25x90	90x25x90	75	55	25
Dn90x32x90	90x32x90	75	55	32
Dn90x40x90	90x40x90	70	56	40
Dn90x50x90	90x50x90	71	55	50
Dn90x63x90	90x63x90	71	64	63
Dn90x75x90	90x75x90	70	66
Dn110x50x110	110x50x110	76	57	50
Dn110x63x110	110x63x110	77	66	63
Dn110x75x110	110x75x110	75	65	75
Dn110x90x110	110x90x110	77	72	90
Dn125x63x125	125x63x125	80	70	63
Dn125x75x125	125x75x125	80	70	75
Dn125x90x125	125x90x125	87	85	90
Dn125x110x125	125x110x125	80	87	110
Dn140x63x140	140x63x140	75	70	63
Dn140x75x140	140x75x140	75	75	75
Dn140x90x140	140x90x140	81	70	90
Dn140x110x140	140x110x140	81	75	110
Dn140x125x140	140x125x140	80	80	125
Dn160x50x160	160x50x160	80	50	50
Dn160x63x160	160x63x160	84	64	63
Dn160x75x160	160x75x160	85	66	75
Dn160x90x160	160x90x160	84	73	90
Dn160x110x160	160x110x160	83	76	110
Dn160x125x160	160x125x160	85	100	125
Dn160x140x160	160x140x160	100	100	140
Dn180x110x180	180x110x180	85	100	110
Dn180x160x180	180x160x180	85	84	160
Dn200x63x200	200x63x200	95	65	63
Dn200x75x200	200x75x200	96	66	75
Dn200x90x200	200x90x200	96	72	90
Dn200x110x200	200x110x200	85	75	110
Dn200x125x200	200x125x200	105	90	125
Dn200x160x200	200x160x200	95	84	160
Dn225x63x225	225x63x225	110	80	63
Dn225x75x225	225x75x225	110	85	75
Dn225x90x225	225x90x225	110	90	90
Dn225x110x225	225x110x225	110	100	110
Dn225x160x225	225x160x225	110	110	160
Dn225x200x225	225x200x225	110	110	200
Dn250x90x250	250x90x250	101	93	90
Dn250x110x250	250x110x250	101	77	110
Dn250x160x250	250x160x250	100	84	160
Dn250x200x250	250x200x250	101	97	200
Dn280x110x280	280x110x280	100	100	110
Dn280x160x280	280x160x280	100	100	160
Dn280x200x280	280x200x280	100	105	200
Dn280x250x280	280x250x280	110	105	250
Dn315x110x315	315x110x315	101	76	110
Dn315x160x315	315x160x315	100	85	160
Dn315x200x315	315x200x315	100	97	200
Dn315x250x315	315x250x315	101	102	250
Dn355x90x355	355x90x355	90	100	90
Dn355x110x355	355x110x355	90	100	110
Dn355x160x355	355x160x355	90	100	160
Dn355x200x355	355x200x355	90	100	200
Dn355x250x355	355x250x355	90	100	250
Dn355x315x355	355x315x355	90	100	315
Dn400x90x7400	400x90x7400	90	100	90
Dn400x110x400	400x110x400	90	100	110
Dn400x160x400	400x160x400	90	100	160
Dn400x200x400	400x200x400	90	100	200
Dn400x250x400	400x250x400	90	100	250
Dn400x315x400	400x315x400	90	100	315
Dn400x355x400	400x355x400	90	100	355
Dn450x110x450	450x110x450	120	120	110
Dn450x160x450	450x160x450	130	120	160
Dn450x200x450	450x200x450	120	120	200
Dn450x225x450	450x225x450	150	130	225
Dn450x250x450	450x250x450	140	130	250
Dn450x315x450	450x315x450	130	140	315
Dn450x400x450	450x400x450	120	160	400
Dn500x160x500	500x160x500	140	135	160
Dn500x200x500	500x200x500	135	135	200
Dn500x225x500	500x225x500	150	135	225
Dn500x250x500	500x250x500	135	135	250
Dn500x315x500	500x315x500	145	145	315
Dn500x400x500	500x400x500	140	160	400
Dn500x450x500	500x450x500	150	170	450
Dn560x110x560	560x110x560	135	140	110
Dn560x160x560	560x160x560	135	140	160
Dn560x200x560	560x200x560	135	140	200
Dn560x400x560	560x400x560	135	160	400
Dn560x450x560	560x450x560	150	170	450
Dn560x500x560	560x500x560	140	170	500
Dn630x400x630	630x400x630	145	160	400
Dn630x450x630	630x450x630	150	180	450
Dn630x500x630	630x500x630	140	180	500

Features and construction precautions of PE pipe fittings

Feature Description

1 High breaking elongation, good extensibility and excellent scratch resistance

2. Non-toxic, good toughness and high impact strength

3. Good insulation, wear resistance and chemical corrosion resistance

4. Good thermal insulation and low medium flow resistance

5 Convenient and economical laying, safe and reliable use

Precautions for PE pipe construction:
PE pipe fittings are an indispensable part of PE pipe construction, and the connection between pipes and PE pipe fittings is particularly important
1. In case of connection in cold climate (below - 5 degrees) and windy environment, maintenance measures or adjustment of connection process shall be taken
2. The corresponding special heating machine shall be used according to different interface modes, and the pipes and PE pipe fittings shall not be heated with open fire
3. Pipes and fittings of the same brand and performance matching shall be used for pipes connected by fusion. The construction of pipes and fittings with similar performance can be stopped before they are tested and qualified
4. Before connecting PE pipes and pipe fittings, PE pipes, PE pipe fittings and facilities and equipment shall be inspected according to the design requirements, and the inspection shall be stopped before the construction site. Only when the pipes and pipe fittings meet the requirements can they be used for construction. The main inspection items include product pressure grade, surface quality, quality of matching products, etc

Advantages of HDPE pipe fittings

A. Long service life

B. Good sanitary performance

C. Excellent wear resistance

D. Good corrosion resistance

E. Small friction coefficient and low resistance

F. Good flexibility and scratch resistance

G. Good crack resistance

H. Good welding ability

I. Low cost

Description of hot-melt butt connection

Hot melt butt connection is a special butt welding machine. First, fix and process the two connecting ends, clean the connecting ends, and then place the heating plate between the two PE pipe ends or PE pipe fittings. After heating for a certain time to reach the required temperature, pull out the heating plate until the interface cools down, thus realizing the connection of PE pipe and pipe fittings

FAQs

Q1: How about your products and prices

A: Our products and prices have a competitive advantage in the market, with excellent quality and low price, and are produced with 100% new materials

Q2: Where is your company? How far is it from the airport

A: We are located in Ningbo, China. It is only 40 minutes' drive from our factory to the airport. Once you confirm your flight information with us, we can provide a pickup service

Q3: What is your warranty policy

Answer: OULU guarantees that the product will be guaranteed for two years from the date of shipment. OULU also guarantees that the product can be used for 50 years under accurate construction. Except for force majeure, such as flood, earthquake, war, etc

Q4: What is your minimum order

Answer: PE accessories: order from one box, and the quantity is based on the actual product size

Q5: How about the delivery time

A: We always have stock of common products, which can be delivered within 15 days. For large orders, the delivery time needs to be negotiated, generally no more than 30 days

Q6: How to get free samples

A: You can send your detailed address, telephone number, postal code and express account number to our mailbox number (Sally: sales6@china-oulu.net ）And tell us what type of sample you need. Our sales team will contact you within 24 hours

Q7: What are your terms of payment

A:Accept the terms T/T and L/C
